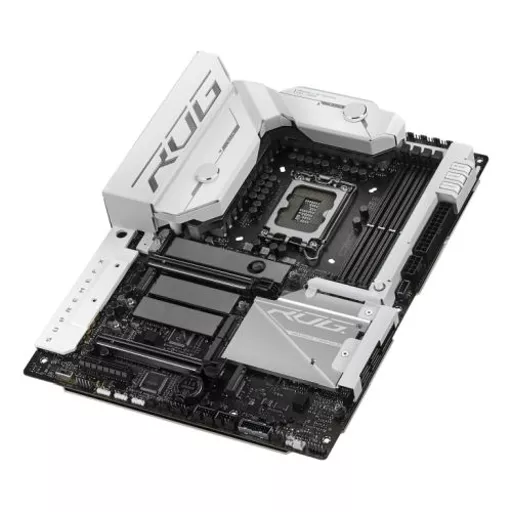

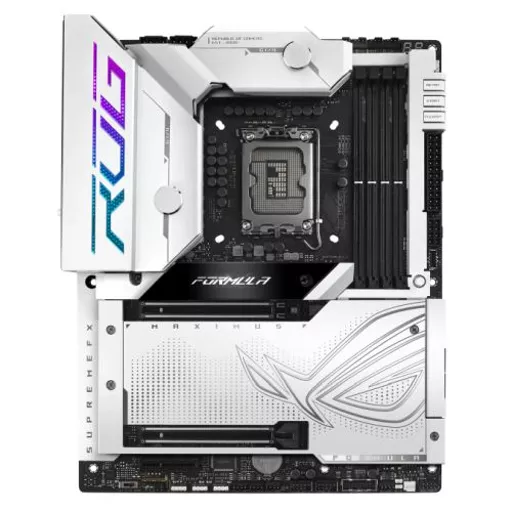

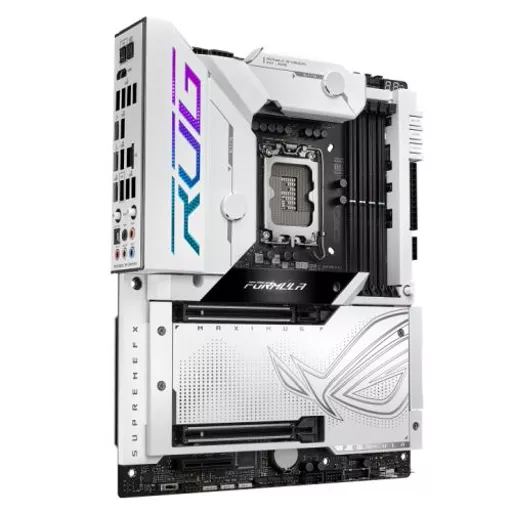

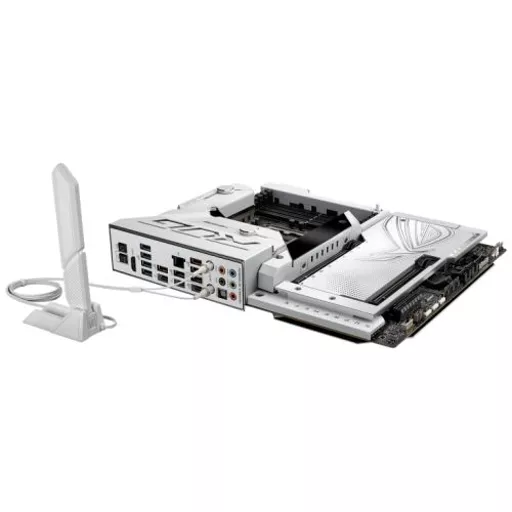

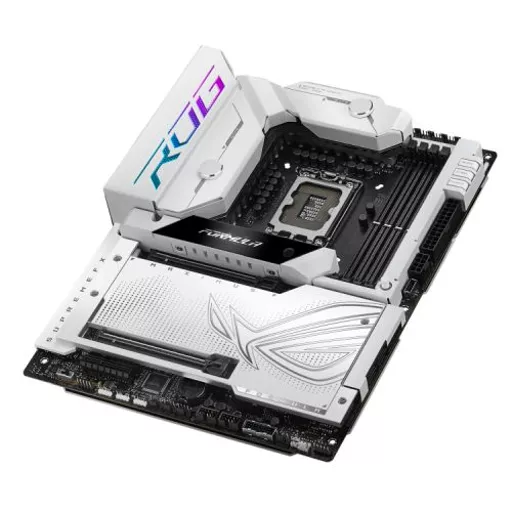

Asus ROG MAXIMUS Z790 FORMULA

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5, Dual Channel
  Supports Intel Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Intel Thunderbolt 4 (USB Type-C) support DisplayPort and Thunderbolt video outputs
• PCI/PCI Express: 2 x PCIe 5.0 x16 (x16 or x8/x8 modes)
  1 x PCIe 4.0 x4
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
• Wireless: "Intel Wi-Fi 7
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
  Bluetooth v5.4 "
• LAN: 5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• USB Ports Supported: "Rear:
  2 x Thunderbolt 4 (USB Type-C)
  6 x USB 10Gbps (5 Type-A, 1 Type-C)
  4 x USB 5Gbps (Type-A)

  Front:
  1 x USB 20Gbps (Type-C with up to 60W PD/QC4+)
  4 x USB 5Gbps
  4 x USB 2.0"
• Back Panel I/O Ports: "2 x Thunderbolt 4 USB Type-C
  6 x USB 10Gbps (5 Type-A, 1 Type-C)
  4 x USB 5Gbps (Type-A)
  1 x HDMI
  1 x Wi-Fi module
  1 x Realtek 5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button "
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x W_PUMP+
  1 x 2-pin Water In
  1 x 2-pin Water Out
  1 x 3-pin Water Flow
  1 x 24-pin main
  2 x 8-pin +12V
  1 x 8-pin PCIe
  5 x M.2 slots (Key M)
• .: 4 x SATA 6Gb/s ports
  1 x USB 20Gbps (supports USB Type-C)
  2 x USB 5Gbps
  2 x USB 2.0
  3 x Addressable Gen2
  1 x Alteration PCIe mode switch
  1 x Aura RGB
  1 x CPU over voltage jumper
  1 x FlexKey button
  1 x Front panel audio
• .: 1 x ReTry button
  1 x Start button
  1 x 10-1 pin system panel
  1 x Thermal sensor
• Accessories: 1 x ARGB RGB extension cable
  2 x ROG weave SATA 6G cables
  2 x SATA 6Gb/s cables
  1 x DDR5 fan holder
  1 x Thermal pad for M.2
  1 x ASUS WiFi Q-Antenna
  1 x Q-connector
  3 x M.2 backplate Q-Latch packages
  1 x ROG key chain
  1 x ROG stickers
• .: 1 x ROG VIP card
  1 x M.2 rubber package
  3 x M.2 backplate rubber packages
  1 x USB drive with utilities and drivers
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 4.5000 kg
• Warranty: 3 Years
